Home / Products / Entry Fit™ K2A-Series Door Frames

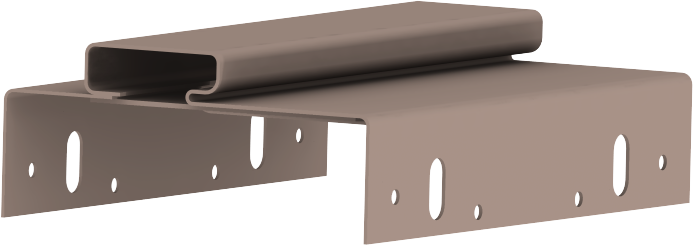

Entry Fit™ K2A-Series Pre-Finished Adjustable Double Rabbet Steel Door Frames for Interior and Exterior Application

Designed for new construction or remodel in high rise, assisted living, hotel, motel, office or residential applications.

Entry Fit™ K2A-Series Pre-Finished Adjustable Double Rabbet Steel Door Frames for Interior and Exterior Application

Designed for new construction or remodel in high rise, assisted living, hotel, motel, office or residential applications.

Features / Specs

Features & Specifications

  • Main jambs 18 gage, Closure Trim 22 gage
  • 6 Wall sizes 4” to 9 1/2”, 1” adjustment each. Larger wall sizes available upon request.
  • Manufactured of corrosion resistant galvannealed steel
  • Anchoring holes & nail clearance slots for wood casing
  • 4” Hinge Prep with 5/8” radius.
  • 2-3/4”Adjustable T-strike prep with 2-3/4” deadbolt prep
  • Allows units to be site delivered pre-assembled with door
  • Standard IDP Inc. threshold prep at no charge

Options (additional charge will apply)

  • 2-1/4” Full lip strike prep
  • 4-7/8” ASA strike prep
  • 4-1/2” Hinge Prep
  • Custom threshold prep
  • Pre-finished metal casing to match frame

Rough Openings

Rough Openings

K2A-Series Rough Opening

Click an option below for more information.

K2A-Series Rough Opening

Colors / Finishes

Colors & Finishes

IDP White

Standard Colors

Optional Colors

Special Order Colors

Please note, due to the differences in monitor display settings and/or print quality, the actual color may vary. Please contact sales for color matched samples.

Resources

Resources

Click an option below for more information.

IDP Inc. PROJECT DATA
IDP Inc. NOTES and HANDING
IDP Inc. FRAME SCHEDULE
IDP Inc. HARDWARE PREP AVAILABILITY by FRAME TYPE
IDP Inc. HARDWARE PREPS
IDP Inc. 3-1/2″ HINGES (1 or 2 pair) FOR 1-3/8″ DOORS (68, 69, 70 Heights)
IDP Inc. 3-1/2″ HINGES (1-1/2 or 3 pair) FOR 1-3/8″ DOORS (68, 69, 70 Heights)
IDP Inc. 4″ HINGES (1-1/2 or 3 pair) FOR 1-3/4″ DOORS (68, 69, 70 Heights)
IDP Inc. 4″ HINGES (2 or 4 pair) FOR 1-3/4″ DOORS (710, 80, 84, 810 Heights)
IDP Inc. 4-1/2″ HINGES (1-1/2 or 3 pair) FOR 1-3/4″ DOORS (68, 69, 70 Heights)
IDP Inc. 4-1/2″ HINGES (2 or 4 pair) FOR 1-3/4″ DOORS (710, 80, 84, 810 Heights)
IDP Inc. DOUBLE RABBET ADJUSTABLE FRAMES
IDP Inc. CASING DETAILS
IDP Inc. CLOSER REINFORCEMENTS
IDP Inc. K2A-SERIES KERF ADJUSTABLE FRAME INSTALL and ROUGH OPENING SIZING
IDP Inc. SPECIAL ELEVATIONS and DETAILS
IDP Entry-Fit Products Warranty (22KB) – Rev. 12/04/14
Download All Architectural Documents

Installation

Installation

Click an option below for more information.

Prehanging Assembly Instructions K2A and NK2A Series Frames
Installation Instructions K2A and NK2A Series Frames
Snap-On Casing Installation Instructions

Casing

Casing Options

Standard Steel Casing

Colonial Steel Casing

Sill Options

Sill Options

Click an option below for more information.

ADA Saddle Sill

ADA Thermal Break Sill

ADA Tile Back Sill

High Sill

Sill Extension

Profiles

Frame Profiles

Click an option below for more information.

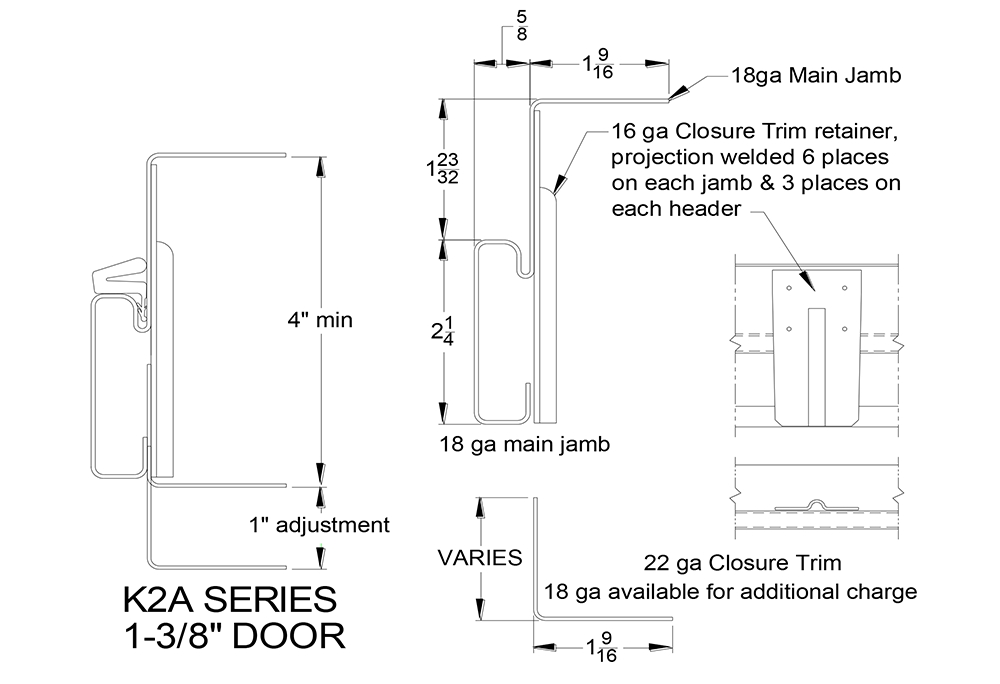

K2A-Series 1 3/8″ Door

K2A-Series 1 3/4″ Door

Fire Ratings

Fire Ratings

  • Independent agency, Warnock Hersey, tests and monitors frames and labels to ensure all frames meet or exceed the listed fire ratings.
  • Labels are tamper proof. If you see this label, the frame meets IDP Inc. high quality standards and the listed fire rating.
  • Mylar labels have a mask applied to be removed after installation and final finish is applied.

Fire Rating Certification Details for IDP Entry-Fit™ K2A-Series and NK2A Frame Products *

Rating Max Door Opening Width Max Door Opening Height Min Wall Size Base Frame Gauge Closure Frame Gauge Test Standard Edge Seals for Cat A Doors Edge Seals for Cat B Doors
90 Min. Single 4’0″ 7’0″ 4-1/2″ 18 22 Positive Pressure No Additional Edge Seals Required Additional Category G Edge Seals Required
90 Min. Single 3’0″ 8’0″ 4-1/2″ 18 22 Positive Pressure No Additional Edge Seals Required Additional Category G Edge Seals Required
90 Min. Pair 6’0″ 8’0″ 4-1/2″ 18 22 Positive Pressure No Additional Edge Seals Required Additional Category G Edge Seals Required



* Single Swing: Cross bracing at latch height must be used for metal stud walls
* Standard Pairs: Cross bracing 24″ on center and double studs at each opening for metal stud walls
* Wood trim (pine or solid wood with an equal or greater density) is allowed for a reduced fire rating of 60 minutes

Download IDP Fire Rated Products Sheet
