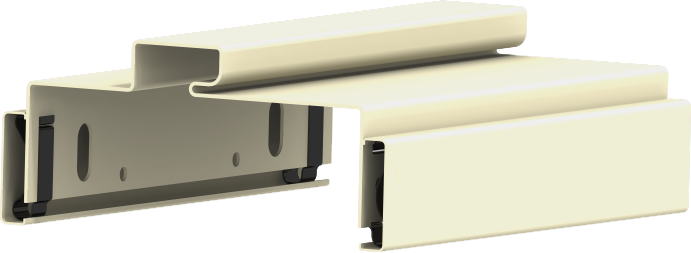

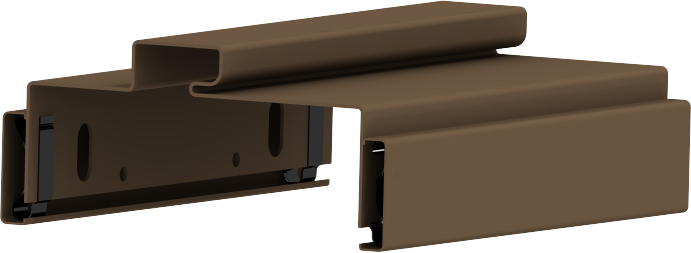

Entry Fit™ KF-Series Pre-Finished Kerf Steel Door Frames for Interior and Exterior Application

Designed for new construction or remodel in high rise, assisted living, hotel, motel, office or residential applications.

Entry Fit™ KF-Series Pre-Finished Kerf Steel Door Frames for Interior and Exterior Application

Designed for new construction or remodel in high rise, assisted living, hotel, motel, office or residential applications.

Features / Specs

Features & Specifications

  • 12 standard wall sizes 4 1/2″ to 7 3/8″ , other custom sizes available
  • Kerf fixed throat frame option
  • Available for 1 3/8″ and 1 3/4″ doors
  • Frames are constructed of corrosion resistant galvannealed steel
  • Hinge preps: 3 1/2″, 4″ and 4 1/2″
  • 4 7/8″ ANSI Strike Prep (STANDARD)
  • 2 3/4″ T-Strike Prep, 2 3/4″ Deadbolt Strike Prep (OPTIONAL)
  • Standard frame is reversible in 6’8″ and available in 7’0″ heights (left hand or right hand swing)
  • Pre-finished metal casing to match frame (1-1/2″ width)

Rough Openings

Rough Openings

F-Series Rough Opening

KF-Series Rough Opening

Click an option below for more information.

KF-Series Rough Opening

F-Series Standard Sidelite Rough Opening

Standard Sidelite Rough Opening

Standard Sidelite Rough Opening

Colors / Finishes

Colors & Finishes

IDP White

Standard Colors

Optional Colors

Special Order Colors

Please note, due to the differences in monitor display settings and/or print quality, the actual color may vary. Please contact sales for color matched samples.

Resources

Resources

Click an option below for more information.

IDP Inc. PROJECT DATA
IDP Inc. NOTES and HANDING
IDP Inc. FRAME SCHEDULE
IDP Inc. HARDWARE PREP AVAILABILITY by FRAME TYPE
IDP Inc. HARDWARE PREPS
IDP Inc. 3-1/2″ HINGES (1 or 2 pair) FOR 1-3/8″ DOORS (68, 69, 70 Heights)
IDP Inc. 3-1/2″ HINGES (1-1/2 or 3 pair) FOR 1-3/8″ DOORS (68, 69, 70 Heights)
IDP Inc. 4″ HINGES (1-1/2 or 3 pair) FOR 1-3/4″ DOORS (68, 69, 70 Heights)
IDP Inc. 4″ HINGES (2 or 4 pair) FOR 1-3/4″ DOORS (710, 80, 84, 810 Heights)
IDP Inc. 4-1/2″ HINGES (1-1/2 or 3 pair) FOR 1-3/4″ DOORS (68, 69, 70 Heights)
IDP Inc. 4-1/2″ HINGES (2 or 4 pair) FOR 1-3/4″ DOORS (710, 80, 84, 810 Heights)
IDP Inc. FIXED THROAT FRAME SECTIONS
IDP Inc. CASING OPTIONS
IDP Inc. CLOSER REINFORCEMENTS
IDP Inc. ROUGH OPENINGS
IDP Inc. SIDELITE AND BORROWED LITE ROUGH OPENINGS
IDP Inc. SPECIAL ELEVATIONS and DETAILS
IDP Entry-Fit Products Warranty (22KB) – Rev. 12/04/14
Download All Architectural Documents

Installation

Installation

Click an option below for more information.

IDP Installation Instructions for F & KF Series Frames
Installation Instructions – Sidelites
Installation Instructions for Surface Mounted Hardware; Closures and Exit Hardware
Snap-On Casing Installation Instructions

Casing

Casing Options

Standard Steel Casing

Colonial Steel Casing

Sill Options

Sill Options

Click an option below for more information.

ADA Saddle Sill

ADA Thermal Break Sill

ADA Tile Back Sill

High Sill

Sill Extension

Profiles

Frame Profiles

Click an option below for more information.

1-3/4″ KERF FRAME DOUBLE RABBET

1-3/8″ KERF FRAME DOUBLE RABBET

1 3/8″ KERF FRAME SINGLE RABBET

1 3/4″ KERF FRAME SINGLE RABBET

Fire Ratings

Fire Ratings

  • Independent agency, Warnock Hersey, tests and monitors frames and labels to ensure all frames meet or exceed the listed fire ratings.
  • Labels are tamper proof. If you see this label, the frame meets IDP Inc. high quality standards and the listed fire rating.
  • Mylar labels have a mask applied to be removed after installation and final finish is applied.

Fire Rating Certification Details for IDP Entry-Fit™ F-Series and KF-Series Frame Products *

Rating Max Door Opening Width Max Door Opening Height Min Wall Size Min Wall Size KF-Series Gauge Test Standard Edge Seals for Cat A Doors Edge Seals for Cat B Doors
90 Min. Single 4’0″ 7’0″ 4-1/2″ 5″ 18 Positive Pressure No Additional Edge Seals Required Additional Category G Edge Seals Required
90 Min. Single 3’0″ 8’0″ 4-1/2″ 5″ 18 Positive Pressure No Additional Edge Seals Required Additional Category G Edge Seals Required
90 Min. Pair 6’0″ 8’0″ 4-1/2″ 5″ 18 Positive Pressure No Additional Edge Seals Required Additional Category G Edge Seals Required
20 Min. Single 3’0″ 8’0″ 3-1/2″ 5″ 18 Positive Pressure No Additional Edge Seals Required Additional Category G Edge Seals Required



* Single Swing: Cross bracing at latch height must be used for metal stud walls
* Standard Pairs: Cross bracing 24″ on center and double studs at each opening for metal stud walls
* Wood trim (pine or solid wood with an equal or greater density) is allowed for a reduced fire rating of 60 minutes

Download IDP Fire Rated Products Sheet
